84046200.HMT1

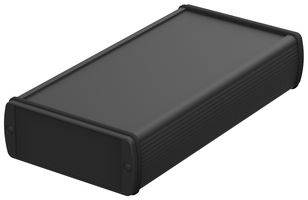

84046200.HMT1 is an ABPH 1040-0200 ALUBOS_SET profile enclosure with end covers (protection class IP65/DIN EN 60529).

• Enclosure body consists of a powder-coated horizontally divided aluminium profile
• Good EMC protection due to contact surfaces which contact the cover to the profile
• Recessed profile sides can be used for mounting membrane keyboards and sides ergonomically designed
• ABD - end cover with a recessed surface for mounting front membranes or membrane keyboards
• Extruded profiles: Al Mg Si 0.5 powder-coated; die-cast cover GD Al Si 12 powder-coated, seal TPE;
• Temperature resistance is -25°C / 110°C
• Made of aluminium material
• IP65 and NEMA 3 rated
• RAL 9005 black colour
• Dimension is 42mm x 200mm x 108mm (H x W x D)

목차

Housing profile, 2 x covers, 2 x black seal, Screws, Black screw covers.
