583 재고
더 필요하세요?
583 3-4 영업일 이내 배송(영국 재고)
| 수량 | 가격 |
|---|---|
| 1+ | ₩3,961 |
| 10+ | ₩3,485 |
| 25+ | ₩3,036 |
| 100+ | ₩2,762 |
| 250+ | ₩2,646 |
| 500+ | ₩2,560 |
| 1000+ | ₩2,473 |
| 2500+ | ₩2,401 |
가격기준Each
주문 최소수량: 1
주문 배수수량: 1
₩3,961
라인 메모 추가
이 주문에 한해 주문 확인서, 청구서, 발송장에 추가됨,
이 번호는 주문 확인서, 청구서, 발송장, 웹 확인 이메일, 제품 라벨에 추가됩니다.
제품 정보
제조업체MOLEX
제조업체 부품 번호172704-0188
주문 코드2433225
Product Range172704
AKAFMP007S105, GTIN UPC EAN: 889056062640
For Use WithMolex D Sub Housing Connectors
D Sub Contact TypeSocket (Female)
Contact GenderSocket
Contact MaterialCopper Alloy
Contact PlatingGold Plated Contacts
Wire Size AWG Max8AWG
Wire Size AWG Min12AWG
Contact Termination TypeSolder
Product Range172704
SVHCPyrochlore, antimony lead yellow (07-Nov-2024)
제품 개요

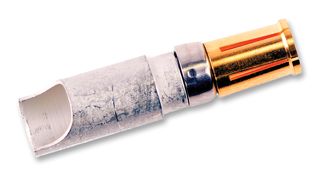

The FMP007S105 is a 40A solder high power socket contact with straight cable termination. It is made up of gold-plated copper alloy. It is suitable for use with the D-sub mixed layout connectors.
기술 사양
For Use With
Molex D Sub Housing Connectors
Contact Gender
Socket
Contact Plating
Gold Plated Contacts
Wire Size AWG Min
12AWG
Product Range
172704
D Sub Contact Type
Socket (Female)
Contact Material
Copper Alloy
Wire Size AWG Max
8AWG
Contact Termination Type
Solder
SVHC
Pyrochlore, antimony lead yellow (07-Nov-2024)
기술 문서 (2)
관련 제품
1개 제품을 찾았습니다.
법률 및 환경
원산지:
최종후의 중요 제조 공정이 이루어진 국가원산지:Germany
최종후의 중요 제조 공정이 이루어진 국가
최종후의 중요 제조 공정이 이루어진 국가원산지:Germany
최종후의 중요 제조 공정이 이루어진 국가
관세 번호:85366990
US ECCN:EAR99
EU ECCN:NLR
RoHS 준수:Y-Ex
RoHS
RoHS 프탈레이트 준수:예
RoHS
SVHC:Pyrochlore, antimony lead yellow (07-Nov-2024)
제품 준수 증명서 다운로드
제품 준수 증명서
무게(kg):.001961
