STMicroelectronics P-NUCLEO-53L8A1 Time-of-Flight Sensor Development Kit

Accelerate robotics, IoT, and AI applications with ST P-NUCLEO-53L8A1, featuring STM32 MCU, VL53L8 multizone ToF sensors, and ModusToolbox support for rapid prototyping.

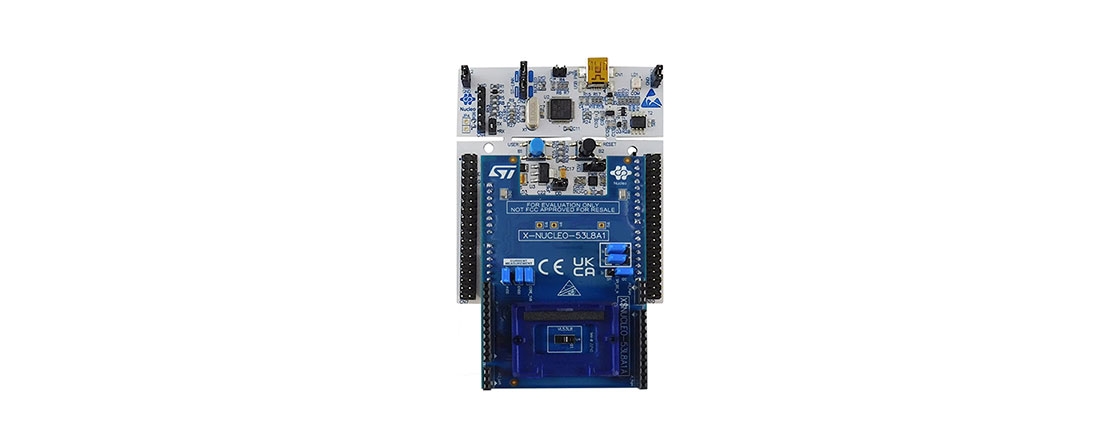

The P-NUCLEO-53L8A1 is a complete evaluation kit designed to learn, evaluate, and develop applications using the different commercial products of the VL53L8 series Time-of-Flight sensors, including VL53L8CX and VL53L8CH.

The VL53L8CX is an 8x8 multizone, ToF-ranging sensor that enhances performance under ambient light with reduced power consumption. It is based on STMicroelectronics FlightSense technology and designed to provide accurate ranging up to 400 cm with a 65° diagonal FoV.

The VL53L8CH integrates a powerful new-generation VCSEL and two advanced metasurface lenses. The integrated VCSEL emits fully invisible 940 nm IR light, which is Class 1 certified and safe for the eyes. It delivers raw Compact Normalized Histogram (CNH) data output across up to 64 zones and 128 bins. This enables advanced AI applications such as object classification, surface detection, gesture, and hand posture recognition.

It is ideal for robotics, IoT, and AI applications, including Arduino® UNO R3 connectors, spacers, and a cover glass. With full software support and ModusToolbox™ compatibility, it accelerates prototyping of the STM32 Nucleo pack with X-NUCLEO-53L8A1 expansion board and NUCLEO-F401RE development board, enabling rapid prototyping and application development for advanced ToF sensing solutions across multiple industries and use cases.

Buy Now ►

User Manual ► About ST Microelectronics ►

Explore More

STM32 Nucleo Development Boards ►

Kit Contents

Expansion Board X-NUCLEO-53L8A1
Development Board NUCLEOF401RE

Features and Benefits

X-NUCLEO-53L8A1 Time-of-Flight expansion board based on the VL53L8 series for STM32 Nucleo
NUCLEO-F401RE development board
0.25, 0.5, and 1 mm spacers to simulate air gaps
One cover glass to protect the sensor from the dust
Equipped with Arduino® UNO R3 connectors
Full system software supplied, including code examples and graphical user interface
RoHS, CE, UKCA, and China RoHS compliant

Block Diagram

VL53L8CH ToF Sensor-Block Diagram

Applications

AI applications requiring multizone raw data
Cup rim detection for coffee machines and beverage dispensers
Floor sensing for robotics and vacuum cleaners
Gesture motion and hand posture recognition
People counting for smart buildings and smart homes
Robotic applications in difficult environments including SLAM, wall tracking, small object detection, cliff prediction, and floor type recognition
System activation under ambient light for smart buildings and smart lighting. E.g.: user detection to wake up devices
Content management for tanks, loads in trucks, and waste bins
Liquid level monitoring
Keystone correction for video projectors
Augmented reality/Virtual reality enhancement
IoT and battery powered devices for user and object detection
