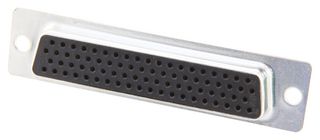

17EHD078SAA000
D Sub Connector, HD78, High Density, Receptacle, 17EHD, 78 Contacts, DD, Solder
2,400 지금 제품을 예약하실 수 있습니다
| 수량 | 가격 |
|---|---|
| 1+ | ₩11,600 |
| 10+ | ₩9,863 |
| 40+ | ₩8,943 |
| 80+ | ₩8,516 |
| 120+ | ₩8,276 |
| 280+ | ₩7,796 |
| 520+ | ₩7,463 |
| 1000+ | ₩7,127 |
제품 정보
제품 개요
The 17EHD078SAA000 is a 78-position D-sub Connector, 17EHD series, gold flash over nickel-plated copper alloy contacts, 0.120-inch (3.05mm) clear hole panel mounting and solder cup termination, socket (female)-type contact. The high density D-subminiature connector complement Amphenol’s extensive D-subminiature connector line. This line of connector offers many superior features and high performance level. A cable mount version with solder terminations is also available, which can be combined with Amphenol’s standard line of shielded or unshielded backshells.
- Tin-plated steel shell
- UL94V-0 black glass-filled thermoplastic dielectric
- 3A Maximum current rating per contact
- 125VAC Voltage rating
- 1000VAC Minimum dielectric withstanding voltage
- 5000MΩ Minimum insulation resistance
- 15mΩ Maximum contact resistance
애플리케이션
Communications & Networking, Industrial
기술 사양
High Density
17EHD
DD
Through Hole Mount
Gold Plated Contacts
No SVHC (25-Jun-2020)
Receptacle
78Contacts
Solder
Copper Alloy
Steel Body
법률 및 환경
최종후의 중요 제조 공정이 이루어진 국가원산지:Taiwan
최종후의 중요 제조 공정이 이루어진 국가
RoHS
RoHS
제품 준수 증명서
