페이지 인쇄

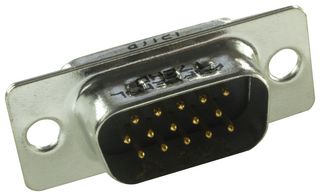

이미지는 참고용으로만 제공됩니다. 자세한 내용은 제품 설명을 참조하세요.
2,483 재고
더 필요하세요?
66 1-2 영업일 이내 배송(싱가폴 재고)
2417 3-4 영업일 이내 배송(영국 재고)
수량 | 가격 |
---|---|
1+ | ₩3,106 |
10+ | ₩2,644 |
25+ | ₩2,478 |
50+ | ₩2,360 |
100+ | ₩2,248 |
250+ | ₩2,107 |
500+ | ₩2,006 |
1000+ | ₩1,911 |
3000+ | ₩1,768 |
가격기준Each
주문 최소수량: 1
주문 배수수량: 1
₩3,106
부품 번호 /라인 메모 추가
이 주문에 한해 주문 확인서, 청구서, 발송장에 추가됨,
이 번호는 주문 확인서, 청구서, 발송장, 웹 확인 이메일, 제품 라벨에 추가됩니다.
제품 정보
제조업체 부품 번호17EHD015PAA000
주문 코드2293710
Product Range17EHD
AKA17EHD-015-P-AA-0-00
기술 데이터 시트
D Sub Connector TypeHigh Density
GenderPlug(관련 커넥터 보기)
Product Range17EHD
No. of Contacts15Contacts
D Sub Shell SizeDE
Contact Termination TypeSolder Cup
Connector MountingCable Mount
Contact MaterialCopper Alloy
Contact PlatingGold Plated Contacts
Connector Body MaterialSteel Body
SVHCNo SVHC (25-Jun-2020)
제품 개요
The 17EHD015PAA000 is a 15-position D-sub Connector, 17EHD series, gold flash over nickel-plated copper alloy contacts, 0.120-inch (3.05mm) clear hole panel mounting and solder cup termination, pin (male)-type contact. The high density D-subminiature connector complement Amphenol’s extensive D-subminiature connector line. This line of connector offers many superior features and high performance level. A cable mount version with solder terminations is also available, which can be combined with Amphenol’s standard line of shielded or unshielded backshells.
- Tin-plated steel shell
- UL94V-0 black glass-filled thermoplastic dielectric
- 3A Maximum current rating per contact
- 125VAC Voltage rating
- 1000VAC Minimum dielectric withstanding voltage
- 5000MΩ Minimum insulation resistance
- 15mΩ Maximum contact resistance
애플리케이션
Communications & Networking, Industrial
기술 사양
D Sub Connector Type
High Density
Product Range
17EHD
D Sub Shell Size
DE
Connector Mounting
Cable Mount
Contact Plating
Gold Plated Contacts
SVHC
No SVHC (25-Jun-2020)
Gender
Plug
No. of Contacts
15Contacts
Contact Termination Type
Solder Cup
Contact Material
Copper Alloy
Connector Body Material
Steel Body
법률 및 환경
원산지:
최종후의 중요 제조 공정이 이루어진 국가원산지:China
최종후의 중요 제조 공정이 이루어진 국가
최종후의 중요 제조 공정이 이루어진 국가원산지:China
최종후의 중요 제조 공정이 이루어진 국가
관세 번호:85366990
US ECCN:EAR99
EU ECCN:NLR
RoHS 준수:예
RoHS
RoHS 프탈레이트 준수:예
RoHS
SVHC:No SVHC (25-Jun-2020)
제품 준수 증명서 다운로드
제품 준수 증명서
무게(kg):.004763
