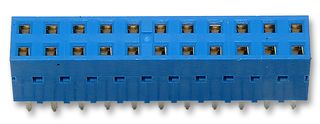

76342-306LF

The DUBOX 76342 series Board-to-Board Connector for use with span industry segments (base stations, industrial control). It is available in single or double-row in either straight or right angle orientation from 2 to 50 positions. The maximum current rating is 3A per contact. The Dubox® contact has a pre-stressed, dual beam design to enable low insertion force, 4-wall contact design for signal protection. It mates with very short pins (5mm) stackable end-to-end and side-by-side.

• Dual beam contact design
• Contact pre-stressed
• Floating solder tails self centre on the circuit pads
• 4 Wall contact design
• Duplex plating
• Locating feature available
• High temperature performing raw material
• High reliable electrical performances
• Low insertion force required
• Easy to assures the coplanarity
• Maintaining the alignment for soldering and facilitates robotic placement
• Compatible with infrared and vapour-phase reflow

애플리케이션

Communications & Networking, Test & Measurement, Industrial
