MAX14840PMB1#

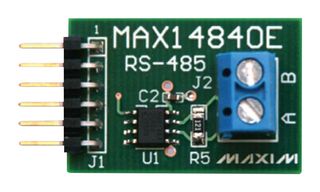

MAX14840PMB1# is a MAX14840PMB1 peripheral module that provides the necessary hardware to interface the MAX14840E RS-485 transceiver to any system that utilizes Pmod™-compatible expansion ports configurable for a UART interface. The IC is a +3.3V ESD-protected transceiver intended for half-duplex RS-485 communication up to 40Mbps. These transceivers are optimized for high speeds over extended cable runs, while maximizing tolerance to noise. The IC features symmetrical fail-safe and larger receiver hysteresis, providing improved noise rejection and improved recovered signals in high-speed and long-cable applications. Suitable for backplane buses, fieldbus networks, HV AC networks, industrial control systems, motion controllers applications.

• Half-duplex RS-485 transceivers
• 40Mbps maximum data rate
• Large (170mV) receiver hysteresis
• Symmetrical fail-safe receiver input
• Hot-swap capability, short-circuit-protected outputs
• Thermal self-protection, extended ESD protection for RS-485 I/O pins
• 6-pin Pmod-compatible connector (Pmod Interface Type 4 UART)
• Example software written in C for portability
• Proven PCB layout
• Fully assembled and tested
