AVFS-1

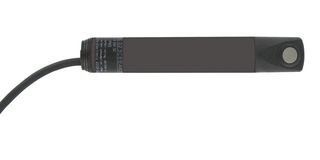

AVFS-1 is a 80-250AC/DC power thermo air flow switch, specifically designed to monitor air flow in ducts and provides a 3A contact output to indicate a change or loss of flow. The AVFS provides a ±5% set-point repeatability across a full scale range of 1-10m/s (197-1969fpm) and includes a mounting bracket for quick duct mounting. Typical applications include fan monitoring, filter monitoring, damper feedback and air handlers.

• Integral red/green air flow status LEDs
• Flush sensor design limits issues due to dust or particulate in the air flow
• IP65 construction
• Temperature limits range from 5 to 122°F (-10 to 50°C)
• PBT body, titanium sensor wetted materials
• N.O. SPST switch type
• IP65 enclosure rating
• 1 red LED/1 green LED display
