페이지 인쇄
이미지는 참고용으로만 제공됩니다. 자세한 내용은 제품 설명을 참조하세요.
주문 가능
제조업체 표준 리드 타임: 5주
입고 시 알림 요청
수량 | 가격 |
---|---|
1+ | ₩23,858 |
5+ | ₩22,973 |
10+ | ₩21,472 |
20+ | ₩19,924 |
50+ | ₩18,406 |
가격기준Each
주문 최소수량: 1
주문 배수수량: 1
₩23,858
부품 번호 /라인 메모 추가
이 주문에 한해 주문 확인서, 청구서, 발송장에 추가됨,
이 번호는 주문 확인서, 청구서, 발송장, 웹 확인 이메일, 제품 라벨에 추가됩니다.
제품 정보
제조업체HAMMOND
제조업체 부품 번호1591XXFFLGY
주문 코드1876926
Product Range1591XX
Enclosure TypeMultipurpose
Enclosure MaterialABS
External Height - Metric64mm
External Width - Metric150mm
External Depth - Metric221mm
IP RatingIP54
Body ColourGrey
NEMA Rating-
External Height - Imperial2.52"
External Width - Imperial5.91"
External Depth - Imperial8.7"
Product Range1591XX
SVHCNo SVHC (21-Jan-2025)
제품 개요

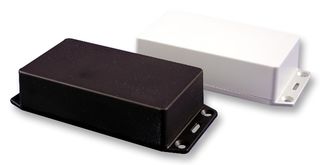

The 1591XXFFLGY is a multipurpose Enclosure made of flame retardant ABS plastic with flanged lid. It is ideally suited for horizontally mounting printed circuit boards are designed for vertical board mounting. It has strong - tongue and groove lid to box construction provides protection against access of dust and splashing water. The lid is secured with M3 x 10mm Philips machine screws, threaded into integral brass bushings. It is perfectly suited for applications with repetitive assembly and disassembly are required.
- UL94V-0 Flammability rating
- Flanged lid is perfect for wall or shelf mounting and enclosure security
- Lid and box both contain - moulded in PC board standoffs
애플리케이션
Industrial
목차
Box, Lid, 6x Cover screws and Installed brass inserts.
기술 사양
Enclosure Type
Multipurpose
External Height - Metric
64mm
External Depth - Metric
221mm
Body Colour
Grey
External Height - Imperial
2.52"
External Depth - Imperial
8.7"
SVHC
No SVHC (21-Jan-2025)
Enclosure Material
ABS
External Width - Metric
150mm
IP Rating
IP54
NEMA Rating
-
External Width - Imperial
5.91"
Product Range
1591XX
기술 문서 (1)
1591XXFFLGY의 대체 제품
2개 제품을 찾았습니다.
관련 제품
4개 제품을 찾았습니다.
법률 및 환경
원산지:
최종후의 중요 제조 공정이 이루어진 국가원산지:United States
최종후의 중요 제조 공정이 이루어진 국가
최종후의 중요 제조 공정이 이루어진 국가원산지:United States
최종후의 중요 제조 공정이 이루어진 국가
관세 번호:39269097
US ECCN:EAR99
EU ECCN:NLR
RoHS 준수:예
RoHS
RoHS 프탈레이트 준수:예
RoHS
SVHC:No SVHC (21-Jan-2025)
제품 준수 증명서 다운로드
제품 준수 증명서
무게(kg):.44
