제품 개요

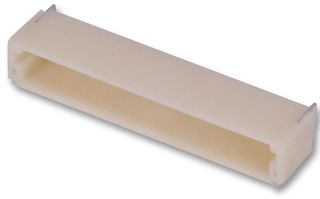

The M40-4010646 is a 6-contact 1mm male SIL Wired-to-board Pin Header with 100% tin over nickel plated phosphor bronze contacts, 100% tin over nickel plated termination and natural UL94V-0 polyamide (nylon) 9T housing. The M40 series plug has horizontal connector orientation, surface mount (SMT) connection type and shrouded pins. It is suitable for use with 0.2mm x 0.4mm mating pin size.
- 1A AC/DC Current rating
- 50VAC/DC Working voltage
- 30mΩ Maximum contact resistance
- 100MΩ Minimum insulation resistance
- 500VAC for one minute Withstanding voltage
애플리케이션
Commercial, Industrial
기술 사양
Connector Systems
Wire-to-Board
Product Range
M40-401
Contact Material
Copper
Connector Type
PCB Header
Contact Termination Type
Surface Mount
Connector Shroud
Shrouded
Contact Plating
Tin Plated Contacts
관련 제품
1개 제품을 찾았습니다.
법률 및 환경
원산지:
최종후의 중요 제조 공정이 이루어진 국가원산지:Taiwan
최종후의 중요 제조 공정이 이루어진 국가
최종후의 중요 제조 공정이 이루어진 국가원산지:Taiwan
최종후의 중요 제조 공정이 이루어진 국가
관세 번호:85366930
US ECCN:EAR99
EU ECCN:NLR
RoHS 준수:예
RoHS
RoHS 프탈레이트 준수:예
RoHS
제품 준수 증명서 다운로드
제품 준수 증명서
무게(kg):.000152
