M80-5002642
Pin Header, Dual in Line, Wire-to-Board, 2 mm, 2 Rows, 26 Contacts, Through Hole Straight
더 필요하세요?
| 수량 | 가격 |
|---|---|
| 1+ | ₩20,534 |
| 10+ | ₩18,198 |
| 25+ | ₩17,499 |
| 100+ | ₩16,800 |
| 250+ | ₩15,863 |
| 500+ | ₩14,464 |
제품 정보
제품 개요

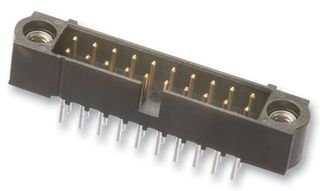

The M80-5002642 is a 26-contact male Datamate J-Tek DIL PCB Plug with black UL94V-0 PPS housing, gold plated phosphor bronze contacts and 100% tin over nickel plated termination. The M80 series connector has jackscrews (without board mount), 3mm PC tail, vertical connector orientation, PC tail/through board connection type and M2 thread size. The connector is intended for use as a low voltage connector in high packing density electronic equipment. The connector is polarised to prevent mismatching and can be produced with a latching feature jackscrew (J-Tek) format.
- 3A (at 25°C), 2.2A (at 85°C) Current rating
- 800VAC/DC Working voltage
- 25mΩ Maximum contact resistance
- 100MΩ Minimum insulation resistance
- 500 operations Durability
애플리케이션
Industrial
기술 사양
Wire-to-Board
2Rows
Through Hole Straight
Shrouded
Gold Plated Contacts
No SVHC (25-Jun-2025)
2mm
26Contacts
Datamate J-Tek M80-5
Phosphor Bronze
PCB Header
법률 및 환경
최종후의 중요 제조 공정이 이루어진 국가원산지:Great Britain
최종후의 중요 제조 공정이 이루어진 국가
RoHS
RoHS
제품 준수 증명서
