제품 정보
제조업체INFINEON
제조업체 부품 번호BTS500101TAEBOARDTOBO1
주문 코드4410777
AKASP003944796
Silicon ManufacturerInfineon
Silicon Core NumberBTS50010-1TAE
Kit Application TypePower Management - Load Switch
Application Sub TypeHigh Side Power Switch
Kit ContentsEvaluation Board BTS50010-1TAE
Product Range-
SVHCNo SVHC (21-Jan-2025)
제품 개요

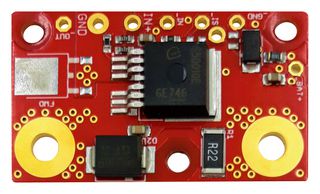

BTS500101TAEBOARDTOBO1 is a 12V protected switch board (BTS50010-1TAE board) comes with BTS50010-1TAE, an ultra-low ohmic smart high-side power switch from the Power PROFET™ family used as Solid State Relay (SSR) to drive the starter motor of a scooter or a motorcycle with an engine smaller than 150 cc and cabling length of up to 3meter. Its typical RDS(ON) is 1.0mohm and it can drive a nominal DC current of up to 40A, with an outstanding inrush capability up to 250A.
- Demo board is designed in very compact form (44.5 x 26.5mm) to provide space-optimized solution
- On this demo board version, D2 and R1 are not assembled (BTS50010-1TAE BOARD)
- Offer an additional board version where D2 and R2 are assembled (BTS50010-1TAE DBTVS)
기술 사양
Silicon Manufacturer
Infineon
Kit Application Type
Power Management - Load Switch
Kit Contents
Evaluation Board BTS50010-1TAE
SVHC
No SVHC (21-Jan-2025)
Silicon Core Number
BTS50010-1TAE
Application Sub Type
High Side Power Switch
Product Range
-
기술 문서 (1)
법률 및 환경
원산지:
최종후의 중요 제조 공정이 이루어진 국가원산지:Germany
최종후의 중요 제조 공정이 이루어진 국가
최종후의 중요 제조 공정이 이루어진 국가원산지:Germany
최종후의 중요 제조 공정이 이루어진 국가
관세 번호:84733020
US ECCN:EAR99
EU ECCN:NLR
RoHS 준수:예
RoHS
RoHS 프탈레이트 준수:추후 공고함
SVHC:No SVHC (21-Jan-2025)
제품 준수 증명서 다운로드
제품 준수 증명서
무게(kg):.18
