CYW920829B0M2P4TAI100EVK
Evaluation Kit, CYW20829B0-P4TAI100, Bluetooth Low Energy 5.4, Wireless Connectivity
더 필요하세요?
| 수량 | 가격 |
|---|---|
| 1+ | ₩123,298 |
제품 정보
제품 개요

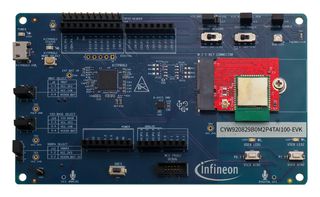

CYW920829B0M2P4TAI100-EVK is an evaluation kit enables to evaluate and develop Bluetooth® applications using the AIROC™ CYW20829B0-P4TAI100, an ultra-low-power Bluetooth® LE 5.4 Module including an integrated trace antenna. The CYW20829B0-P4TAI100 includes an onboard crystal oscillator, flash memory, and the CYW20829 - the Bluetooth® LE 5.4 MCU with Industry’s best range, ARM Cortex M33 dedicated for applications and CAN FD. Targeted for automotive, wireless input devices, remotes, keyboards, joysticks, Bluetooth® mesh, asset tracking, lighting and home automation.
- Standard Arduino headers support
- Supports 3.3V, coin-cell (3V), 1.8V
- Customizable/Programmable user buttons
- Micro-USB connector for programming
- On-board six-axis inertial measurement unit
- On-board thermistor and Mic
- Support for Infineon’s AIROC™ BTSTACK
- Support for the ModusToolbox™
- Code examples from the Infineon GitHub
기술 사양
Infineon
Wireless Connectivity
Eval Board CYW20829B0-P4TAI100, USB 2.0 Type-A to Micro-B Cable, 6x Jumper Wire, Quick Start Guide
No SVHC (21-Jan-2025)
CYW20829B0-P4TAI100
Bluetooth Low Energy
-
기술 문서 (1)
법률 및 환경
최종후의 중요 제조 공정이 이루어진 국가원산지:India
최종후의 중요 제조 공정이 이루어진 국가
RoHS
제품 준수 증명서
