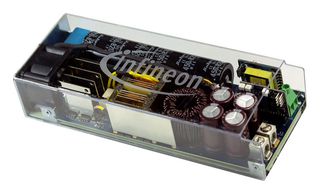

EVAL3K3WBIDIPSFBTOBO1
Evaluation Board, Power Management, IPL60R075CFD7, Bidirectional DC-DC Converter

| 제조업체 | INFINEON |
|---|---|
| 제조업체 부품 번호 | EVAL3K3WBIDIPSFBTOBO1복사 |
| 제조업체 표준 리드 타임 | 52주 |
| 주문 코드 | 3514695 |
| AKA | SP004308580, EVAL_3K3W_BIDI_PSFB |
| 귀하의 부품 번호 |
더 필요하세요?
| 수량 | 가격 |
|---|---|
| 1+ | ₩1,118,465 |
제품 정보
| 제조업체 | INFINEON |
|---|---|
| 제조업체 부품 번호 | EVAL3K3WBIDIPSFBTOBO1복사 |
| 제조업체 표준 리드 타임 | 52주 |
| 주문 코드 | 3514695 |
| AKA | SP004308580, EVAL_3K3W_BIDI_PSFB |
| Silicon Manufacturer | Infineon |
| Silicon Core Number | IPL60R075CFD7 |
| Kit Application Type | Power Management |
| Application Sub Type | Bidirectional DC-DC Converter |
| Kit Contents | Evaluation Board IPL60R075CFD7 |
| Product Range | - |
| Automotive Qualification Standard | - |
| SVHC | No SVHC (04-Feb-2026) |
제품 개요
EVAL3K3WBIDIPSFBTOBO1 is a 3300W, 54V, bi-directional phase-shift full-bridge (PSFB) evaluation board with 600V CoolMOS™ CFD7 and XMC™. This evaluation board introduces a highly efficient complete Infineon system solution for a 3300W bi-directional DC-DC converter targeting telecom, battery formation power and industrial robotics applications. Infineon’s 600V CoolMOS™ CFD7 superjunction MOSFET in ThinPAK package is the most recent and best performance fast body diode device. Combined with a low parasitic package and an optimized layout, it achieves great performance with minimum stress. The innovative cooling concept presented in this board enables its remarkable performance. This board achieves 98% efficiency in buck mode and 97% in boost mode. Typical applications include energy storage systems, telecom, battery formation power, industrial robotics and industrial automation.
- High efficiency PSFB
- High power density PSFB
- Bi-directional PSFB
- Digital controlled PSFB
- Novel integrated magnetics concept
- Novel SMD cooling concept
- Best and latest fast body diode HV technology from Infineon
- Best and latest LV synchronous rectifiers technology from Infineon
- Bi-directional capability of PSFB (patented)
경고
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
기술 사양
| Silicon Manufacturer | Infineon |
|---|---|
| Kit Application Type | Power Management |
| Kit Contents | Evaluation Board IPL60R075CFD7 |
| Automotive Qualification Standard | - |
| Silicon Core Number | IPL60R075CFD7 |
|---|---|
| Application Sub Type | Bidirectional DC-DC Converter |
| Product Range | - |
| SVHC | No SVHC (04-Feb-2026) |
법률 및 환경
| 원산지: 최종후의 중요 제조 공정이 이루어진 국가원산지: | Germany 최종후의 중요 제조 공정이 이루어진 국가 |
|---|---|
| 관세 번호: | 84733020 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS 준수: | 예 RoHS |
| RoHS 프탈레이트 준수: | 예 RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| 제품 준수 증명서 다운로드 | 제품 준수 증명서 |
| 무게(kg): | 1.442876 |
