KITT2G-B-ELITE

KITT2G-B-ELITE is a TRAVEO™ T2G body entry lite evaluation kit enables to evaluate and develop customer applications using the TRAVEO™ T2G body entry MCU. ModusToolbox™ software can be used to develop and debug customer TRAVEO™ T2G-B-E MCU projects. ModusToolbox™ software is a set of tools that enable to integrate these devices into user existing development methodology. The TRAVEO™ T2G B-E MCU is specifically designed for automotive applications and features an Arm® Cortex®-M4F CPU for primary processing, and an Arm® Cortex®-M0+ CPU for peripheral and security processing that supports low-power operations, up to 4MB flash and 512KB SRAM, and programmable analogue and digital peripherals that allow for faster time-to-market. The TRAVEO™ T2G B-E Lite kit is equipped with a TRAVEO™ T2G B-E family CYT2BL MCU, two expansion headers, two Shield2Go connectors, and headers that are compatible with Arduino shield and mikroBUS.

• KitProg3 USB Micro-B interface (Bus Power)
• DC power jack (recommended 12V, min 1A)
• Arduino compatible connectors, Shield2Go connector, mikroBUS™ connector
• Expansion header, CAN connector
• CAN FD transceiver, 2 user buttons, 3 user LEDs
• Reset button, potentiometer
• Board supports operating voltages from 3.3V to 5V for the TRAVEO™ T2G B-E MCU

목차

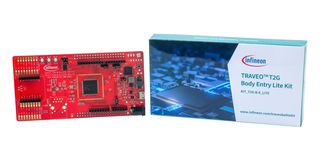

KIT-T2G-B-E-LITE board, USB Micro-B cable.
