73 06 160

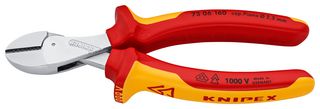

73 06 160 is a 6-1/4" X-Cut® compact diagonal cutter. It cuts finest strands as well as multi-core cables and piano wires. Its high cutting performance with minimum effort due to optimum coordination of the cutting edge angle and transmission ratio. The 40% less force required compared with standard diagonal cutters of the same length. Cutting capacity - up to 3/16" for soft, up to 5/32" for medium, up to 7/64" for hard, up to 3/32" for piano wire and up to 15/32" for Cu and Al multi conductor cable.

• Powerful, light and universal, box-joint design: highest stability with low weight
• Doubly supported joint axis for heavy duty, cuts precisely, even through fine copper wires
• Compact, low-weight construction, universally usable, in the assembly, maintenance and production
• 40% less force required compared with standard diagonal cutters of the same length
• Chrome vanadium heavy-duty steel; forged, multi stage oil-hardened
• 1000V multi-component grips, VDE-tested, powerful, light weight and a universal cutter
• Cuts fine strands as well as multi-stranded cables and piano wires
• Dimension is 160 x 60 x 28mm, DIN ISO 5749 DIN EN 60900 IEC 60900 standard
• Bevel cutting edge shape

경고

Whenever possible switch off power. Never touch conductive parts. Always wear approved eye protection.
