제품 정보
제조업체LAIRD
제조업체 부품 번호TSC903-1000
주문 코드557730
기술 데이터 시트
Fixing TypeRetaining Spring
For Use WithTO-3P, TO-218, TO-247 Packages
External Length30mm
External Width6.5mm
Product Range-
SVHCTo Be Advised
제품 개요

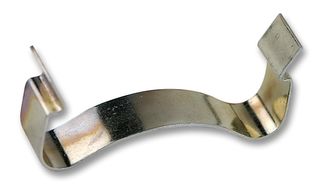

The TSC903 is a 30 x 6.5mm transistor Spring Clip offers and quicker way of mounting plastic case transistors onto heat sink compared to the conventional screw, nut and insulation bush method. Because spring clip makes contact with the middle of the case, an even pressure is applied across the complete device, unlike screw mounting which can cause a cantilever action under high torque conditions with some loss of thermal contact. This clip is suitable for use with TO-3P, TO-218 and TO-247 devices.
애플리케이션
Industrial
기술 사양
Fixing Type
Retaining Spring
External Length
30mm
Product Range
-
For Use With
TO-3P, TO-218, TO-247 Packages
External Width
6.5mm
SVHC
To Be Advised
기술 문서 (1)
관련 제품
1개 제품을 찾았습니다.
법률 및 환경
원산지:
최종후의 중요 제조 공정이 이루어진 국가원산지:Taiwan
최종후의 중요 제조 공정이 이루어진 국가
최종후의 중요 제조 공정이 이루어진 국가원산지:Taiwan
최종후의 중요 제조 공정이 이루어진 국가
관세 번호:73269098
RoHS 준수:예
RoHS
RoHS 프탈레이트 준수:추후 공고함
SVHC:To Be Advised
제품 준수 증명서 다운로드
제품 준수 증명서
무게(kg):.012701
