DM164150

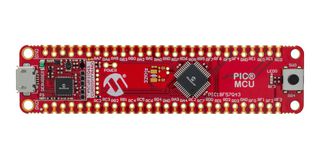

The PIC18F57Q43 Curiosity Nano evaluation kit is a hardware platform to evaluate microcontrollers in the PIC18-Q43 family. This board has the PIC18F57Q43 microcontroller (MCU) mounted. Supported by Microchip MPLAB® X Integrated Development Environment (IDE), the board provides easy access to the features of the PIC18F57Q43 to explore how to integrate the device into a custom design. With the award-winning MPLAB X integrated development platform and MPLAB Code Configurator (MCC), the kit provides access to the intelligent analogue and core independent peripherals on the PIC18F57Q43.

• One mechanical user switch, one yellow user LED
• Include an on-board debugger, no external tools are necessary to program and debug PIC18F57Q43
• One green power and status LED
• USB powered
• MIC5353 LDO regulator controlled by the on-board debugger
• 1.8V to 5.1V output voltage (limited by USB input voltage)
• 500mA maximum output current
• Footprint for 32.768KHz crystal
• Virtual COM port (CDC), one logic analyser channel (GPIO)

목차

PIC18F57Q43 Curiosity Nano evaluation board, Two 100mil, 1x28 pin header strips.
