제품 정보
제조업체MOLEX
제조업체 부품 번호16-02-0069
주문 코드2358100
Product RangeSL 70058
AKA70058-0004, GTIN UPC EAN: 800753595941
기술 데이터 시트
Product RangeSL 70058
Contact GenderSocket
Contact Termination TypeCrimp
Wire Size AWG Max24AWG
Contact PlatingTin Plated Contacts
For Use WithMolex SL 70066 & 70450 Series Housing Connectors
Wire Size AWG Min30AWG
Contact MaterialPhosphor Bronze
SVHCNo SVHC (25-Jun-2025)
제품 개요

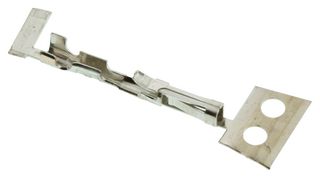

The 16-02-0069 is a SL™ female socket crimp terminal made of phosphor bronze with tin plated finish. This 70058 series female crimp terminal accepts 30 to 24AWG wire. It can be used with 73099 CyClone panel-to-panel connector. The terminal is suitable for signal applications.
애플리케이션
Automotive, Commercial Vehicle, Communications & Networking, Consumer Electronics, Industrial, Medical
기술 사양
Product Range
SL 70058
Contact Termination Type
Crimp
Contact Plating
Tin Plated Contacts
Wire Size AWG Min
30AWG
SVHC
No SVHC (25-Jun-2025)
Contact Gender
Socket
Wire Size AWG Max
24AWG
For Use With
Molex SL 70066 & 70450 Series Housing Connectors
Contact Material
Phosphor Bronze
16-02-0069의 대체 제품
7개 제품을 찾았습니다.
관련 제품
1개 제품을 찾았습니다.
법률 및 환경
원산지:
최종후의 중요 제조 공정이 이루어진 국가원산지:Malaysia
최종후의 중요 제조 공정이 이루어진 국가
최종후의 중요 제조 공정이 이루어진 국가원산지:Malaysia
최종후의 중요 제조 공정이 이루어진 국가
관세 번호:85369010
US ECCN:EAR99
EU ECCN:NLR
RoHS 준수:예
RoHS
RoHS 프탈레이트 준수:예
RoHS
SVHC:No SVHC (25-Jun-2025)
제품 준수 증명서 다운로드
제품 준수 증명서
무게(kg):.5
