페이지 인쇄
521 재고
5,120 지금 제품을 예약하실 수 있습니다
521 3-4 영업일 이내 배송(영국 재고)
| 수량 | 가격 |
|---|---|
| 1+ | ₩6,115 |
| 10+ | ₩5,831 |
| 100+ | ₩5,184 |
| 250+ | ₩4,809 |
| 500+ | ₩4,744 |
가격기준Each
주문 최소수량: 1
주문 배수수량: 1
₩6,115
라인 메모 추가
이 주문에 한해 주문 확인서, 청구서, 발송장에 추가됨,
제품 정보
제조업체MOLEX
제조업체 부품 번호73251-2120
주문 코드1909303
Product Range73251
AKAGTIN UPC EAN: 822348020843
기술 데이터 시트
Connector TypeSMA Coaxial
Connector Body StyleStraight Bulkhead Jack
Coaxial TerminationBoard Edge / End Launch
Impedance50ohm
Coaxial Cable Type-
Contact MaterialBeryllium Copper
Contact PlatingGold Plated Contacts
Frequency Max18GHz
Connector MountingPCB Mount
Product Range73251
SVHCLead (27-Jun-2024)
제품 개요

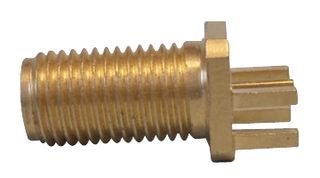

The 73251-2120 is a 50 ohm PCB edge mount straight SMA Jack. Features gold-plated brass body, PTFE insulator and gold-plated Beryllium copper centre contact.
- Subminiature design
- Threaded coupling
- Edge mount - 1.57 mm board thickness
- Supplied without hardware
기술 사양
Connector Type
SMA Coaxial
Coaxial Termination
Board Edge / End Launch
Coaxial Cable Type
-
Contact Plating
Gold Plated Contacts
Connector Mounting
PCB Mount
SVHC
Lead (27-Jun-2024)
Connector Body Style
Straight Bulkhead Jack
Impedance
50ohm
Contact Material
Beryllium Copper
Frequency Max
18GHz
Product Range
73251
기술 문서 (2)
법률 및 환경
원산지:
최종후의 중요 제조 공정이 이루어진 국가원산지:Taiwan
최종후의 중요 제조 공정이 이루어진 국가
최종후의 중요 제조 공정이 이루어진 국가원산지:Taiwan
최종후의 중요 제조 공정이 이루어진 국가
관세 번호:85366990
US ECCN:EAR99
EU ECCN:NLR
RoHS 준수:예
RoHS
RoHS 프탈레이트 준수:예
RoHS
SVHC:Lead (27-Jun-2024)
제품 준수 증명서 다운로드
제품 준수 증명서
무게(kg):.002722
