MP720024 EU-UK -

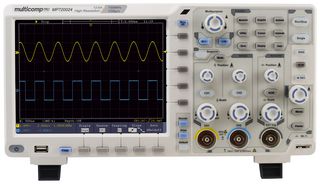

Name: Digital Oscilloscope, Economical, 12bit, Eco Series, 2 Analogue, 1 Ext Trigger, 100 MHz, 1 GSPS
Brand: MULTICOMP PRO
SKU: 3107582
Availability: InStock

Digital Oscilloscope, Economical, 12bit, Eco Series, 2 Analogue, 1 Ext Trigger, 100 MHz, 1 GSPS

비교용으로 추가

이미지는 참고용으로만 제공됩니다. 자세한 내용은 제품 설명을 참조하세요.

제조업체:: MULTICOMP PRO MULTICOMP PRO
제조업체 부품 번호:: MP720024 EU-UK
주문 코드:: 3107582
제품 범위: Eco Series
기술 데이터 시트:: MP720024 EU-UK Datasheet

모든 기술 문서 보기

제품 정보

Product Range:: Eco Series
Scope Channels:: 2 Analogue, 1 Ext Trigger
Bandwidth:: 100MHz
Sampling Rate:: 1GSPS
Display Memory Depth:: 20 Mpts
Calculated Rise Time:: 3.5ns
Scope Display Type:: LCD Colour
Kit Contents:: DSO, Power Cord, USB Cable, CD Rom, Probes, Probe Adjust Tool, Optional Acc: Soft Bag
Manufacturer Warranty:: 1 Year
Plug Type:: EU, UK

유사 제품 찾기 위에서 특징을 선택하고 수정하여 비슷한 제품을 찾을 수 있습니다.

제품 개요

The Multicomp Pro Pro MP720024 is a 12 bit, economical 100MHz digital oscilloscope. Featuring a 12 bit high vertical resolution 8" large TFT display, 20M record lengths, 55,000 wfms/s waveform refresh rates, multi-trigger and bus decoding functions and SCPI/LabVIEW support.

12 bits high vertical resolution
8" large clear TFT display (800x600)
Ultra-thin body design, less space accommodation
Low background noise - vertical sensitivity of 1mV/div - 10V/div
Standard SPI/I2C/RS232/CAN decoding functions
SCPI and LabVIEW support
Multi-interface integration - USB host, USB device, USB port for PictBridge, LAN and AUX and VGA port.
Horizontal scale (s/div) - 2ns/div - 1000s/div, step by 1-2-5
Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C, SPI, RS232 and CAN trigger types
Dimensions - 340 x 177 x 90mm

Device weight - 2.6kg

각주

In addition, we offer calibration services for this product. Choose from a Standard Certificated Service or an internationally recognised UKAS accredited calibration. Visit our calibration service page for more details.
