페이지 인쇄

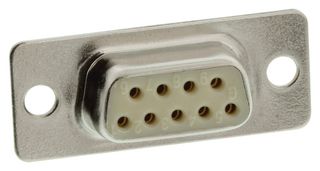

이미지는 참고용으로만 제공됩니다. 자세한 내용은 제품 설명을 참조하세요.
305 재고
더 필요하세요?
305 3-4 영업일 이내 배송(영국 재고)
수량 | 가격 |
---|---|
1+ | ₩5,112 |
10+ | ₩4,338 |
25+ | ₩4,065 |
50+ | ₩3,871 |
100+ | ₩3,686 |
300+ | ₩3,411 |
500+ | ₩3,291 |
1000+ | ₩3,134 |
2500+ | ₩3,008 |
가격기준Each
주문 최소수량: 1
주문 배수수량: 1
₩5,112
부품 번호 /라인 메모 추가
이 주문에 한해 주문 확인서, 청구서, 발송장에 추가됨,
이 번호는 주문 확인서, 청구서, 발송장, 웹 확인 이메일, 제품 라벨에 추가됩니다.
제품 정보
제조업체NORCOMP
제조업체 부품 번호172-E09-213R001
주문 코드2124463
Product Range172-E M Series
D Sub Connector TypeStandard
GenderReceptacle(관련 커넥터 보기)
Product Range172-E M Series
No. of Contacts9Contacts
D Sub Shell SizeDE
Contact Termination TypeSolder
Connector MountingThrough Hole Mount
Contact MaterialBrass
Contact PlatingGold Plated Contacts
Connector Body MaterialSteel Body
SVHCLead (27-Jun-2024)
제품 개요
The NORCOMP - 172 series high reliability Solder Cup D-sub Connectors with screw machine contacts. It has brass male and female pin contacts with gold flash plating on entire contact, glass-filled thermoplastic insulator and nickel or tin plating steel shell.
- Available in 9, 15, 25, 37 and 50 industry sizes/positions
- Non-removable contacts
- Nickel or tin shells available
- Male shells have indents to provide grounding and additional retention
- Optional mounting hardware available
- UL94V-0 Flammability rating
애플리케이션
Communications & Networking, Computers & Computer Peripherals, Industrial
기술 사양
D Sub Connector Type
Standard
Product Range
172-E M Series
D Sub Shell Size
DE
Connector Mounting
Through Hole Mount
Contact Plating
Gold Plated Contacts
SVHC
Lead (27-Jun-2024)
Gender
Receptacle
No. of Contacts
9Contacts
Contact Termination Type
Solder
Contact Material
Brass
Connector Body Material
Steel Body
172-E09-213R001의 대체 제품
8개 제품을 찾았습니다.
관련 제품
7개 제품을 찾았습니다.
법률 및 환경
원산지:
최종후의 중요 제조 공정이 이루어진 국가원산지:Taiwan
최종후의 중요 제조 공정이 이루어진 국가
최종후의 중요 제조 공정이 이루어진 국가원산지:Taiwan
최종후의 중요 제조 공정이 이루어진 국가
관세 번호:85366990
US ECCN:EAR99
EU ECCN:NLR
RoHS 준수:Y-Ex
RoHS
RoHS 프탈레이트 준수:예
RoHS
SVHC:Lead (27-Jun-2024)
제품 준수 증명서 다운로드
제품 준수 증명서
무게(kg):.0058
