67-1-C-12/5

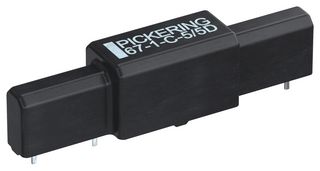

67-1-C-12/5 is a 67 series high voltage dry reed relay. It has small size and encapsulated in plastic package with internal mu-metal magnetic screen. It is constructed by using a lead frame in a Single-in-Line format and features former-less coils which enables a smaller package. The unusual package style allows interesting stacking possibilities when used to construct high density multiplexers or matrices.

• Tungsten plated contacts ensure a long and reliable life
• 1 Form C configuration
• Operating temperature range is -20°C to +85°C
• Coil voltage is 12V, coil resistance is 150 ohm
• Maximum contact resistance is 0.5 ohm
• Maximum operating voltage is 9V, minimum operating voltage is 1.2V
• Power rating is 100W, maximum switch current is 3A
• Maximum switching volts is 2500V
• Minimum stand-off volts is 5000V
• Life expectancy is 10⁸

메모

High voltages and stray capacitance can generate very high current pulses, which can damage the contact plating causing welding of the reed switch.
