RTK9754L23S01000BE

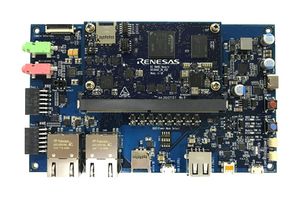

RZ/V2L evaluation board kit consists of a module board (SOM) and a carrier board that can easily start evaluation of the RZ/V2L. It also includes the MIPI Camera Module (MIPI CSI). The carrier board can be commonly used with RZ/G2LC, RZ/G2UL, and RZ/V2L modules (SOM) prepared according to the SMARC v2.1 standard. This allows you to experience seamless and flexible evaluation between these devices.

• RZ/V2L (R9A07G054L23GBG) Cortex-A55 Dual, Cortex-M33 device
• FFC/FPC connector is mounted for connection to high-speed serial interface for camera module
• Micro-HDMI connector via DSI/HDMI conversion module
• Micro-AB and A receptacle are respectively mounted as standard for connection to USB interface
• RJ45 connector is mounted as standard for software development and evaluation using Ethernet
• Audio codec is mounted as standard for advance development of audio system
• CAN connector is implemented for connection to CAN-bus interface
• Micro-AB receptacles are implemented for connection to asynchronous serial port interface
• microSD card slot & 2x sockets for PMOD are implemented as interface for RZ/V2L peripheral functions
• For power supply, a mounted USB type-C receptacle supports the USB PD standard

목차

RZ/V2L SMARC module board, RZ SMARC series carrier board, MIPI camera module.
