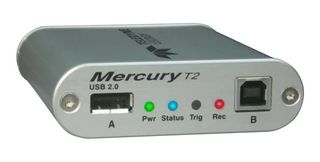

USB-TMA2-M01-X
Protocol Analyser, USB 2.0, Advanced System, Mercury T2 Series
이미지는 참고용으로만 제공됩니다. 자세한 내용은 제품 설명을 참조하세요.
주문 가능
제조업체 표준 리드 타임: 6주
입고 시 알림 요청
수량 | 가격 |
---|---|
1+ | ₩2,806,048 |
가격기준Each
주문 최소수량: 1
주문 배수수량: 1
₩2,806,048
부품 번호 /라인 메모 추가
이 주문에 한해 주문 확인서, 청구서, 발송장에 추가됨,
이 번호는 주문 확인서, 청구서, 발송장, 웹 확인 이메일, 제품 라벨에 추가됩니다.
제품 정보
제조업체TELEDYNE LECROY
제조업체 부품 번호USB-TMA2-M01-X
주문 코드4656185
Product RangeMercury T2 Series
기술 데이터 시트
Product RangeMercury T2 Series
SVHCNo SVHC (21-Jan-2025)
제품 개요
USB-TMA2-M01-X is a Mercury™ T2 USB 2.0 advanced Protocol Analyzer system. The Teledyne LeCroy Mercury T2 is the industry’s smallest, most affordable hardware-based USB 2.0 protocol analyser that combines the de-facto standard CATC Trace display with the very latest USB class decoding. The Mercury T2 fits in a shirt pocket yet provides much of the same lab quality protocol analysis capabilities offered in Teledyne LeCroy’s top-of-the-line USB analysers.
- Equipped with CATC trace analysis software for faster interpretation and debug of USB traffic
- AutoDetect USB 2.0 speeds that automatically detects low, full, and high speed connections
- Capable of capturing all USB speeds up to 2.0 including OTG (On-the-Go)
- Features 256MB of on-board memory and also supports spool-to-disk capture for extended recording
- Extensive decodes - mass storage, Bluetooth HCI, hub, PTP/still Image, printer, HID, audio
- Hardware filtering - automatically exclude non-essential and redundant packets from the trace
- Intelligent reporting -quickly identify and track error rates, abnormal bus or timing conditions
- Provides triggering with drag-and-drop selections for PID type, data patterns, errors and bus event
- Features USB real-time statistics, export to .CSV, automation API, verification script engine
- Compact, bus-powered system measures 3.0” x 3.5”, weighs 5 oz
기술 사양
Product Range
Mercury T2 Series
SVHC
No SVHC (21-Jan-2025)
기술 문서 (1)
관련 제품
1개 제품을 찾았습니다.
법률 및 환경
원산지:
최종후의 중요 제조 공정이 이루어진 국가원산지:United States
최종후의 중요 제조 공정이 이루어진 국가
최종후의 중요 제조 공정이 이루어진 국가원산지:United States
최종후의 중요 제조 공정이 이루어진 국가
관세 번호:90308900
US ECCN:EAR99
EU ECCN:NLR
RoHS 준수:예
RoHS
RoHS 프탈레이트 준수:예
RoHS
SVHC:No SVHC (21-Jan-2025)
제품 준수 증명서 다운로드
제품 준수 증명서
무게(kg):.00001
