664 재고
더 필요하세요?
664 3-4 영업일 이내 배송(영국 재고)
| 수량 | 가격 |
|---|---|
| 1+ | ₩10,909 |
| 10+ | ₩9,989 |
| 100+ | ₩8,480 |
| 250+ | ₩8,269 |
| 500+ | ₩7,578 |
| 1000+ | ₩7,218 |
가격기준Each
주문 최소수량: 1
주문 배수수량: 1
₩10,909
라인 메모 추가
이 주문에 한해 주문 확인서, 청구서, 발송장에 추가됨,
제품 정보
| 제조업체 | 3M |
|---|---|
| 제조업체 부품 번호 | 8534-4500PL복사 |
| 제조업체 표준 리드 타임 | 6주 |
| 주문 코드 | 9138668 |
| Product Range | 8500 |
| AKA | 7100007051 |
| 기술 데이터 시트 | |
| Connector Systems | Board-to-Board |
| Pitch Spacing | 2.54mm |
| No. of Rows | 2Rows |
| No. of Contacts | 34Contacts |
| Connector Mounting | Through Hole Mount |
| Product Range | 8500 |
| Contact Material | Copper Alloy |
| Contact Plating | Gold Plated Contacts |
| Contact Termination Type | Through Hole Straight |
| SVHC | No SVHC (15-Jan-2018) |
제품 개요

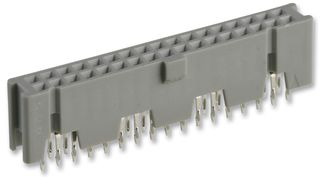

The 8534-4500PL is a 34-way 2-row Polarized Board-mount Socket, 0.100 x 0.100-inch centerbump polarization with straight solder tails. The socket mates with low profile shrouded headers.
- UL94V-0 Flame-rated polyester body
- Board retention feature
- 1A Current rating
- 1000Vrms Withstanding voltage
애플리케이션
Industrial
기술 사양
| Connector Systems | Board-to-Board |
|---|---|
| No. of Rows | 2Rows |
| Connector Mounting | Through Hole Mount |
| Contact Material | Copper Alloy |
| Contact Termination Type | Through Hole Straight |
| Pitch Spacing | 2.54mm |
|---|---|
| No. of Contacts | 34Contacts |
| Product Range | 8500 |
| Contact Plating | Gold Plated Contacts |
| SVHC | No SVHC (15-Jan-2018) |
관련 제품
3개 제품을 찾았습니다.
법률 및 환경
| 원산지: 최종후의 중요 제조 공정이 이루어진 국가원산지: | Japan 최종후의 중요 제조 공정이 이루어진 국가 |
|---|---|
| 관세 번호: | 85366990 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS 준수: | 예 RoHS |
| RoHS 프탈레이트 준수: | 예 RoHS |
| SVHC: | No SVHC (15-Jan-2018) |
| 제품 준수 증명서 다운로드 | 제품 준수 증명서 |
| 무게(kg): | .005657 |
