| 제조업체 | AIM-TTI INSTRUMENTS |
|---|---|
| 제조업체 부품 번호 | 1908복사 |
| 제조업체 표준 리드 타임 | 12주 |
| 주문 코드 | 2629442 |
| Product Range | 1908 Series |
| 귀하의 부품 번호 | |
| 기술 데이터 시트 |
더 필요하세요?
| 수량 | 가격 |
|---|---|
| 1+ | ₩1,161,697 |
제품 정보
| 제조업체 | AIM-TTI INSTRUMENTS |
|---|---|
| 제조업체 부품 번호 | 1908복사 |
| 제조업체 표준 리드 타임 | 12주 |
| 주문 코드 | 2629442 |
| Product Range | 1908 Series |
| 기술 데이터 시트 | |
| No. of Digits | 5.5 |
| DMM Connectivity | USB |
| Current Measure AC Max | 10A |
| Voltage Measure AC Max | 750V |
| Resistance Measure Max | 1kohm |
| Product Range | 1908 Series |
| Current Measure DC Max | 10A |
| Voltage Measure DC Max | 1kV |
| Manufacturer Warranty | 3 Years |
| DMM Functions | AC/DC Current, AC/DC Voltage, Capacitance, Continuity, Diode, Frequency, Resistance, Temperature |
| Plug Type | - |
| SVHC | No SVHC (04-Feb-2026) |
제품 개요

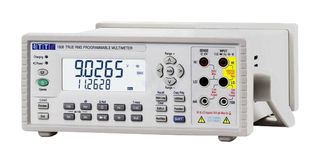

The 1908 from AIM-TTI Instruments is a dual measurement bench multimeter. The 1908 has both a main display and a secondary display. The two displays can be used for a variety of purposes such as to display a measurement along with the selected range (e.g. 100VDC), to display a measurement in two different units (e.g. AC volts and dBm), to display the result of a calculated function (e.g. value and % deviation), to measure and display two parameters of one signal (e.g. AC and DC volts), to measure and display two different signals (e.g. AC volts and DC current). It features continuity and diode test, automatic or manual ranging, linear scaling with offset, dB measurements, limits comparison, percentage deviation (%), min-max storage, power measurement in watts or VA, automatic data logging and external triggering.
- Complies with EN61010-1 2010 and EN61010-2-030 201, EN61010-2-033 and EN61326
- Dimension is 250mm x 97mm x 295mm
애플리케이션
Test & Measurement
메모
In addition, we have calibration services for this product (Europe Only). Visit our calibration service page to see details of what options are available.
기술 사양
| No. of Digits | 5.5 |
|---|---|
| Current Measure AC Max | 10A |
| Resistance Measure Max | 1kohm |
| Current Measure DC Max | 10A |
| Manufacturer Warranty | 3 Years |
| Plug Type | - |
| DMM Connectivity | USB |
|---|---|
| Voltage Measure AC Max | 750V |
| Product Range | 1908 Series |
| Voltage Measure DC Max | 1kV |
| DMM Functions | AC/DC Current, AC/DC Voltage, Capacitance, Continuity, Diode, Frequency, Resistance, Temperature |
| SVHC | No SVHC (04-Feb-2026) |
기술 문서 (1)
법률 및 환경
| 원산지: 최종후의 중요 제조 공정이 이루어진 국가원산지: | Great Britain 최종후의 중요 제조 공정이 이루어진 국가 |
|---|---|
| 관세 번호: | 90303100 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS 준수: | 예 RoHS |
| RoHS 프탈레이트 준수: | 예 RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| 제품 준수 증명서 다운로드 | 제품 준수 증명서 |
| 무게(kg): | 3.6 |
