QPX1200SP

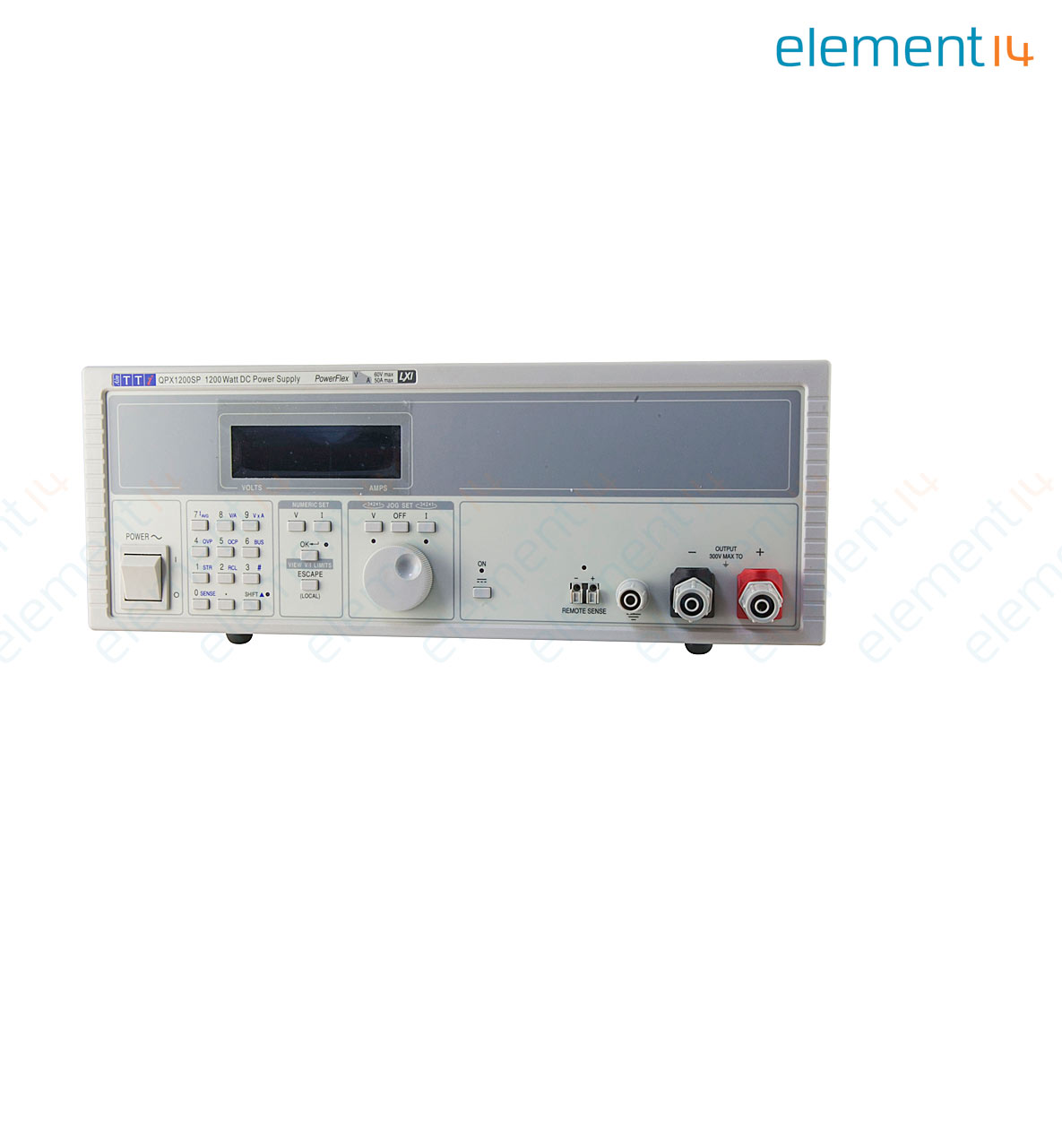

The QPX1200S is a 1.2kW single output dc power supply that offers users a level of flexibility that cannot be achieved with conventional laboratory power supplies. It is suited to be bench-top and system applications and is fitted with both front and rear terminals and an analogue remote control interface. The QPX1200SP has a wide range of digital interfaces: USB, RS232 and LXI compliant LAN (Ethernet).

• PowerFlex' max 60V or 50A
• PowerFlex design gives variable voltage & current combinations within a maximum power range
• Higher current capability at lower voltages
• Linear final regulation provides very low output noise and fast transient response
• Setting by direct numeric entry or by spin wheel
• High setting resolution of 1mV in up to 60 volts
• Bench or rack mounting with front and rear terminals
• Analog, RS232, USB, LAN interfaces
• LAN interface conforms with LXI class C

애플리케이션

Power Management, Test & Measurement

메모

GPIB not included.
