5747840-5
D Sub Connector, DB9, Standard, Plug, AMPLIMITE HD-20, 9 Contacts, DE, Solder
더 필요하세요?
| 수량 | 가격 |
|---|---|
| 1+ | ₩4,299 |
| 10+ | ₩3,950 |
| 25+ | ₩3,732 |
| 50+ | ₩3,725 |
제품 정보
제품 개요

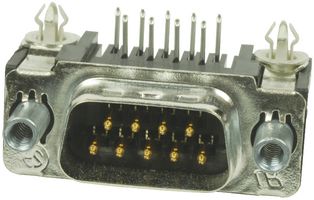

The 5747840-5 is a 9-position 2-row standard Right Angle Plug with gold-plated brass contacts, fixed female screwlocks and size-1 tin-plated carbon steel shell. The Amplimite HD-20 D-sub stacked PCB connector is member of the complete line of Amplimite subminiature D connector family which has been accepted by the electronic industry for their rugged design and ease of application. The low cost front metal-shell design compatible with full metal-shell connectors. Integral boardlock versions secure posted connectors to PC board prior to soldering. The HD-20 connector contacts are available in plating types to satisfy different applications.
- UL94V-0 Rated black thermoplastic housing
애플리케이션
Industrial
기술 사양
Standard
AMPLIMITE HD-20
DE
Through Hole Mount Right Angle
Gold Plated Contacts
No SVHC (21-Jan-2025)
Plug
9Contacts
Solder
Brass
Carbon Steel Body
5747840-5의 대체 제품
8개 제품을 찾았습니다.
관련 제품
2개 제품을 찾았습니다.
법률 및 환경
최종후의 중요 제조 공정이 이루어진 국가원산지:Mexico
최종후의 중요 제조 공정이 이루어진 국가
RoHS
RoHS
제품 준수 증명서
