5747843-4
D Sub Connector, DB37, Standard, Plug, AMPLIMITE HD-20, 37 Contacts, DC, Solder
더 필요하세요?
| 수량 | 가격 |
|---|---|
| 1+ | ₩12,997 |
| 10+ | ₩12,038 |
| 25+ | ₩11,385 |
| 52+ | ₩10,833 |
| 104+ | ₩10,296 |
| 260+ | ₩9,962 |
| 520+ | ₩9,410 |
| 1040+ | ₩8,669 |
제품 정보
제품 개요

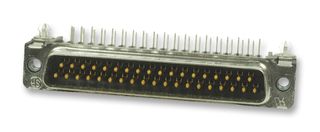

The 5747843-4 is a 37-position 2-row right-angle posted PCB D-sub Connector with gold-plated phosphor bronze contacts and UL94V-0 rated thermoplastic housing. The Amplimite HD-20 series receptacle supports through-hole PCB mounting style and threaded insert, 4-40 UNC mating connector lock. This stacked PCB connector is members of the complete line of Amplimite D-sub connector family which has been accepted by the electronic industry for their rugged design and ease of application. Stacked connectors add the advantage of reducing overall board real estate normally consumed by individual PCB connectors.
- Front metal-shells for EMI/RFI shielding
- Hybrid styles provide maximum selectivity and permit mixing of signal speeds
애플리케이션
Industrial
기술 사양
Standard
AMPLIMITE HD-20
DC
Through Hole Mount Right Angle
Gold Flash over Palladium Nickel Plated Contacts
No SVHC (21-Jan-2025)
Plug
37Contacts
Solder
Phosphor Bronze
Carbon Steel Body
5747843-4의 대체 제품
3개 제품을 찾았습니다.
관련 제품
2개 제품을 찾았습니다.
법률 및 환경
최종후의 중요 제조 공정이 이루어진 국가원산지:Mexico
최종후의 중요 제조 공정이 이루어진 국가
RoHS
RoHS
제품 준수 증명서
