페이지 인쇄
이미지는 참고용으로만 제공됩니다. 자세한 내용은 제품 설명을 참조하세요.
286 재고
더 필요하세요?
286 3-4 영업일 이내 배송(영국 재고)
수량 | 가격 |
---|---|
1+ | ₩16,689 |
16+ | ₩13,722 |
32+ | ₩13,067 |
56+ | ₩12,706 |
가격기준Each
주문 최소수량: 1
주문 배수수량: 1
₩16,689
부품 번호 /라인 메모 추가
이 주문에 한해 주문 확인서, 청구서, 발송장에 추가됨,
이 번호는 주문 확인서, 청구서, 발송장, 웹 확인 이메일, 제품 라벨에 추가됩니다.
제품 정보
제조업체 부품 번호5787190-7
주문 코드1097889
AKA5787190-7
기술 데이터 시트
D Sub Connector Type-
GenderReceptacle(관련 커넥터 보기)
Product Range-
No. of Contacts68Contacts
D Sub Shell Size-
Contact Termination TypeSolder
Connector MountingPCB Mount
Contact MaterialPhosphor Bronze
Contact PlatingGold Plated Contacts
Connector Body MaterialThermoplastic Body
SVHCNo SVHC (21-Jan-2025)
제품 개요

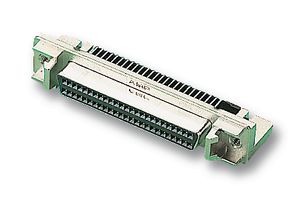

The 5787190-7 is a 1.27mm 68-contact 2-row right-angle Receptacle Assembly for use with printed circuit board. It is made of black thermoplastic housing. It has gold-plated phosphor bronze contact.
애플리케이션
Industrial
기술 사양
D Sub Connector Type
-
Product Range
-
D Sub Shell Size
-
Connector Mounting
PCB Mount
Contact Plating
Gold Plated Contacts
SVHC
No SVHC (21-Jan-2025)
Gender
Receptacle
No. of Contacts
68Contacts
Contact Termination Type
Solder
Contact Material
Phosphor Bronze
Connector Body Material
Thermoplastic Body
법률 및 환경
원산지:
최종후의 중요 제조 공정이 이루어진 국가원산지:China
최종후의 중요 제조 공정이 이루어진 국가
최종후의 중요 제조 공정이 이루어진 국가원산지:China
최종후의 중요 제조 공정이 이루어진 국가
관세 번호:85366930
US ECCN:EAR99
EU ECCN:NLR
RoHS 준수:예
RoHS
RoHS 프탈레이트 준수:예
RoHS
SVHC:No SVHC (21-Jan-2025)
제품 준수 증명서 다운로드
제품 준수 증명서
무게(kg):.020027
