865650PLTXLF

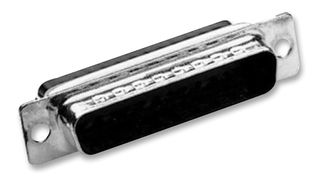

D Sub Connector Housing, 50 Ways, D Sub, DD, FCI 8656 Series Crimp D Subs, Plug, Steel Body
이미지는 참고용으로만 제공됩니다. 자세한 내용은 제품 설명을 참조하세요.

| 제조업체 | AMPHENOL COMMUNICATIONS SOLUTIONS |
|---|---|
| 제조업체 부품 번호 | 865650PLTXLF복사 |
| 제조업체 표준 리드 타임 | 24주 |
| 주문 코드 | 2135950 |
| Product Range | FCI 8656 Series Crimp D Subs |
| 귀하의 부품 번호 | |
| 기술 데이터 시트 |
241 재고
195 지금 제품을 예약하실 수 있습니다
241 3-4 영업일 이내 배송(영국 재고)
| 수량 | 가격 |
|---|---|
| 1+ | ₩2,196 |
| 10+ | ₩1,865 |
| 100+ | ₩1,664 |
| 500+ | ₩1,439 |
| 1000+ | ₩1,398 |
| 2500+ | ₩1,332 |
가격기준Each
주문 최소수량: 1
주문 배수수량: 1
₩2,196
라인 메모 추가
이 주문에 한해 주문 확인서, 청구서, 발송장에 추가됨,
제품 정보
| 제조업체 | AMPHENOL COMMUNICATIONS SOLUTIONS |
|---|---|
| 제조업체 부품 번호 | 865650PLTXLF복사 |
| 제조업체 표준 리드 타임 | 24주 |
| 주문 코드 | 2135950 |
| Product Range | FCI 8656 Series Crimp D Subs |
| 기술 데이터 시트 | |
| No. of Positions | 50Ways |
| Connector Type | D Sub |
| Connector Shell Size | DD |
| Product Range | FCI 8656 Series Crimp D Subs |
| Gender | Plug(관련 커넥터 보기) |
| Connector Body Material | Steel Body |
| For Use With | 8656 Series Signal Contacts |
| SVHC | No SVHC (21-Jan-2025) |
제품 개요
The 8656 series D-sub connector is a part of an industry standard for applications requiring robust and reliable connector. This proven D-sub connector is one of the most popular input/output interconnects, addressing a wide variety of applications. FCI offers D-sub economy range connectors to meet all design requirements and to address increasing needs for proven connectors for less demanding applications.
- D-shaped shell design
- Stamped and formed contacts
- Durability of 50 mating and unmating cycles
- Straight and angled terminations
- Right angle versions available to meet both Europe and US styles
- Supports the need for polarisation
- Interchangeable and intermateable with other makes
- Economical solution
- Can fit into footprint/pitch options of 10.4/2.54mm and 8.08/2.84mm
- -55 to 105°C Operating temperature range
애플리케이션
Industrial, Communications & Networking, Consumer Electronics, Aerospace, Defence, Military, Medical
기술 사양
| No. of Positions | 50Ways |
|---|---|
| Connector Shell Size | DD |
| Gender | Plug |
| For Use With | 8656 Series Signal Contacts |
| Connector Type | D Sub |
|---|---|
| Product Range | FCI 8656 Series Crimp D Subs |
| Connector Body Material | Steel Body |
| SVHC | No SVHC (21-Jan-2025) |
관련 제품
2개 제품을 찾았습니다.
법률 및 환경
| 원산지: 최종후의 중요 제조 공정이 이루어진 국가원산지: | India 최종후의 중요 제조 공정이 이루어진 국가 |
|---|---|
| 관세 번호: | 85389099 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS 준수: | 예 RoHS |
| RoHS 프탈레이트 준수: | 예 RoHS |
| SVHC: | No SVHC (21-Jan-2025) |
| 제품 준수 증명서 다운로드 | 제품 준수 증명서 |
| 무게(kg): | .012689 |
