페이지 인쇄
이미지는 참고용으로만 제공됩니다. 자세한 내용은 제품 설명을 참조하세요.
36 재고
200 지금 제품을 예약하실 수 있습니다
36 3-4 영업일 이내 배송(영국 재고)
수량 | 가격 |
---|---|
1+ | ₩13,686 |
10+ | ₩11,629 |
25+ | ₩10,900 |
50+ | ₩10,380 |
100+ | ₩9,884 |
300+ | ₩9,147 |
500+ | ₩8,824 |
1000+ | ₩8,403 |
가격기준Each
주문 최소수량: 1
주문 배수수량: 1
₩13,686
부품 번호 /라인 메모 추가
이 주문에 한해 주문 확인서, 청구서, 발송장에 추가됨,
이 번호는 주문 확인서, 청구서, 발송장, 웹 확인 이메일, 제품 라벨에 추가됩니다.
제품 정보
제조업체AMPHENOL RF
제조업체 부품 번호112589
주문 코드2579838
AKAB1121A6-NT3G-214U-50
기술 데이터 시트
Connector TypeBNC Coaxial
Connector Body StyleStraight Plug
Coaxial TerminationCrimp
Impedance50ohm
Coaxial Cable TypeRG8, RG8A, RG9, RG9A, RG9B, RG87, RG213, RG214, RG225, RG302, RG393
Contact MaterialBrass
Contact PlatingGold Plated Contacts
Frequency Max4GHz
Connector MountingCable Mount
Product Range-
SVHCLead (14-Jun-2023)
제품 개요

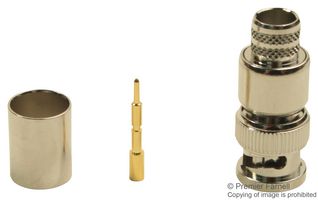

The 112589 is a crimp BNC Straight Plug for use with RG213, RG214, RG225, RG302, RG393, RG8, RG87, RG8A, RG9, RG9A and RG9B RF coaxial cables. It has nickel-plated brass body with gold-plated brass contacts and a natural PTFE (PTFE) insulator.
- Standard polarity
- Bayonet coupling mechanism
- 500 Mating cycles
- -65 to 165°C Temperature range
애플리케이션
RF Communications, Industrial
기술 사양
Connector Type
BNC Coaxial
Coaxial Termination
Crimp
Coaxial Cable Type
RG8, RG8A, RG9, RG9A, RG9B, RG87, RG213, RG214, RG225, RG302, RG393
Contact Plating
Gold Plated Contacts
Connector Mounting
Cable Mount
SVHC
Lead (14-Jun-2023)
Connector Body Style
Straight Plug
Impedance
50ohm
Contact Material
Brass
Frequency Max
4GHz
Product Range
-
112589의 대체 제품
6개 제품을 찾았습니다.
관련 제품
1개 제품을 찾았습니다.
법률 및 환경
원산지:
최종후의 중요 제조 공정이 이루어진 국가원산지:China
최종후의 중요 제조 공정이 이루어진 국가
최종후의 중요 제조 공정이 이루어진 국가원산지:China
최종후의 중요 제조 공정이 이루어진 국가
관세 번호:85366910
US ECCN:EAR99
EU ECCN:NLR
RoHS 준수:예
RoHS
RoHS 프탈레이트 준수:예
RoHS
SVHC:Lead (14-Jun-2023)
제품 준수 증명서 다운로드
제품 준수 증명서
무게(kg):.022226
