제품 정보
제조업체AMPHENOL SOCAPEX
제조업체 부품 번호USBF TV 71 G.
주문 코드1220814
Product RangeUSBFTV
기술 데이터 시트
USB Connector Convert FromUSB Type A Receptacle
USB Connector Convert ToUSB Type A Receptacle
USB StandardUSB 2.0
IP RatingIP67
Product RangeUSBFTV
Contact Material-
Contact Plating-
SVHCCadmium (15-Jun-2015)
USBF TV 71 G.의 대체 제품
2개 제품을 찾았습니다.
제품 개요

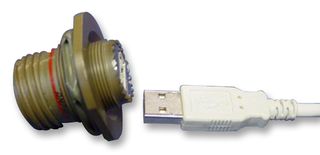

The USBF TV 71 G is an USB sealed connector Jam Nut Receptacle with olive drab cadmium shell and USB-A receptacle back terminations. This metallic plug is connected into a receptacle, using a tri-start thread coupling mechanism with anti-decoupling device for high vibrations. The USB 2.0 cordset shielding is transmitted to the USB receptacle through grounding fingers. For an outstanding EMI protection, the conductive plated shells (Ni, Cd) with metalized receptacle inserts, transmit the shielding to the connector shells and finally to the panel.
- Shock, vibration and traction resistant
- No cabling operation in field and no tools required
- 2 Mechanical coding/polarization possibilities by the user
- USBF TV plug retent° in the receptacle - 100N in the axis
- 500 to 1500 Mating cycles
- IP67 Protection rating
- UL94V-0 Flammability rating
- -55 to 85°C Temperature range
애플리케이션
Industrial, Communications & Networking, Computers & Computer Peripherals, Aerospace, Defence, Military
기술 사양
USB Connector Convert From
USB Type A Receptacle
USB Standard
USB 2.0
Product Range
USBFTV
Contact Plating
-
USB Connector Convert To
USB Type A Receptacle
IP Rating
IP67
Contact Material
-
SVHC
Cadmium (15-Jun-2015)
관련 제품
3개 제품을 찾았습니다.
법률 및 환경
원산지:
최종후의 중요 제조 공정이 이루어진 국가원산지:France
최종후의 중요 제조 공정이 이루어진 국가
최종후의 중요 제조 공정이 이루어진 국가원산지:France
최종후의 중요 제조 공정이 이루어진 국가
관세 번호:85369010
US ECCN:EAR99
EU ECCN:NLR
RoHS 준수:아니요
RoHS 프탈레이트 준수:아니요
SVHC:Cadmium (15-Jun-2015)
제품 준수 증명서 다운로드
제품 준수 증명서
무게(kg):.04
