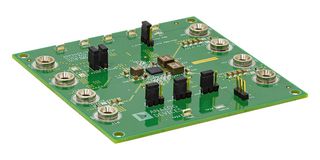

ADP5056-EVALZ

ADP5056-EVALZ is an evaluation board to evaluating the ADP5056 triple buck regulator integrated power solution. The ADP5056-EVALZ features the ADP5056, which combines three high performance buck regulators in a 43-terminal land grid array (LGA) to meet the demanding performance and board space requirements. The ADP5056-EVALZ connects to input voltages up to 18 V directly without any preregulators.

• Wide input voltage range: 2.75V to 18V
• Bias input voltage range: 4.5V to 18V
• Full-featured evaluation board for the ADP5056
• Ch 1 and Ch 2: 7A synchronous buck regulator or 14A output in parallel operation
• Channel 3: 3A synchronous buck regulator
• Selective PSM or FPWM operation
• Programmable switching frequency from 2.5MHz to 250KHz
• Frequency synchronization input or output
