DC2770A-B-KIT
Demonstration Kit, LTC4125EUFD#PBF, LTC4124EV#TRPBF, Wireless Charger, 100 mA Charge Current

| 제조업체 | ANALOG DEVICES |
|---|---|
| 제조업체 부품 번호 | DC2770A-B-KIT복사 |
| 제조업체 표준 리드 타임 | 12주 |
| 주문 코드 | 4034216 |
| 귀하의 부품 번호 | |
| 기술 데이터 시트 |
3 지금 제품을 예약하실 수 있습니다
| 수량 | 가격 |
|---|---|
| 1+ | ₩199,861 |
제품 정보
| 제조업체 | ANALOG DEVICES |
|---|---|
| 제조업체 부품 번호 | DC2770A-B-KIT복사 |
| 제조업체 표준 리드 타임 | 12주 |
| 주문 코드 | 4034216 |
| 기술 데이터 시트 | |
| Kit Application Type | Wireless - Battery Charger |
| Application Sub Type | Wireless Charger |
| Silicon Core Number | LTC4125EUFD#PBF, LTC4124EV#TRPBF |
| Silicon Manufacturer | Analog Devices |
| Kit Contents | Demo Transmitter Board LTC4125EUFD#PBF, Demo Receiver Board LTC4124EV#TRPBF |
| Product Range | - |
| SVHC | No SVHC (04-Feb-2026) |
제품 개요

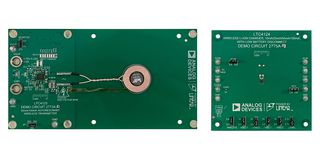

DC2770A-B-KIT is a LTC4124/LTC4125, 100mA wireless Li-ion charger demonstration kit. DC2770A-B-KIT is a kit of the DC2773A-B transmitter board (featuring LTC®4125) and the DC2775A-D (featuring LTC®4124). The DC2775A-D receiver board can charge a single Li-Ion battery at up to 100 mA with an air gap of 3mm to 5mm between the transmit and receive coils. The DC2773A-B transmitter supports Optimum Power Search and Foreign Object Detection features via LTC4125.
- DC2773A-B voltage input 4.5V to 5.5V at VIN ≤ 500mA
- DC2773A-B VIN current of 500mA at VIN = 5V
- 4.35V of DC2775A-D battery charge voltage at VSEL1 = HI, VSEL2 = HI
- 100mA DC2775A-D charge current at VBAT = 4.0V, ISEL1 = VCC, ISEL2 = VCC
- 200KHz DC2773A-B and DC2775A-D resonant tank frequency
