EV-ADF4355-2SD1Z

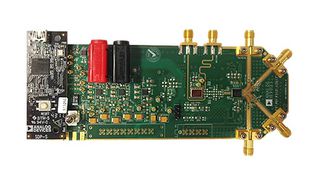

EV-ADF4355-2SD1Z evaluation-board evaluates the performance of the ADF4355-2 frequency synthesizer with integrated VCO for phase-locked loops (PLLs). The evaluation-board contains the ADF4355-2 frequency synthesizer with integrated VCO, a differential 122.88MHz reference (TCXO), a loop filter, a US interface, power supply connectors, and subminiature Version A (SMA) connectors. A USB cable is included to connect the board to a PC USB port. This board requires an SDP-S (not supplied with the kit). The SDP-S allows software programming of the EV-ADF4355-2SD1Z device.

• Self contained board
• Windows®-based software allows control of synthesizer functions from a PC
• Externally powered by 6V

목차

EV-ADF4355-2SD1Z evaluation board, USB cable.
