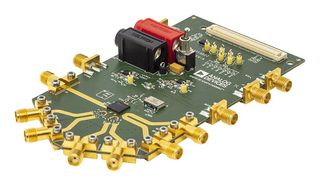

EV-ADF4371SD2Z

EV-ADF4371SD2Z is an evaluation board used to evaluate the performance of the ADF4371 frequency synthesizer with an integrated voltage controlled oscillator (VCO) for phase-locked loops (PLLs). The evaluation board contains the ADF4371 frequency synthesizer with an integrated VCO, a USB interface, power supply connectors, and subminiature Version A (SMA) connectors. This board requires an SDP-S board (not supplied with the kit). The SDP-S allows software programming of the EVADF4371SD2Z device.

• Self-contained board including ADF4371, loop filter (180KHz), USB interface, and voltage regulators
• Windows based software allows control of synthesizer functions from a PC
• Externally powered by 6V
