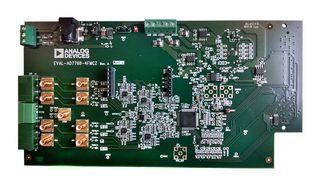

EVAL-AD7768-4FMCZ

EVAL-AD7768-4FMCZ is an evaluation board features the AD7768-4 24bit, 256KSPS, Sigma-Delta analogue-to-digital converter (ADC). A 7V to 9V external bench top supply is regulated to 5V and 3.3V to supply the AD7768-4 and support components. The EVAL-AD7768-4FMCZ is an evaluation board that allows the user to evaluate the features of the ADC. The user PC software executable controls the AD7768-4 over a USB cable through the EVAL-SDP-CH1Z system demonstration platform (SDP).

• Full featured evaluation board for the AD7768-4
• PC control in conjunction with the SDP-H1 system demonstration platform (EVAL-SDP-CH1Z)
• PC software control and data analysis
• Time and frequency domain
• Standalone hardware capability

목차

EVAL-AD7768-4FMCZ evaluation board, Evaluation software CD for the AD7768-4.

메모

ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
