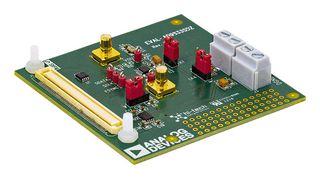

EVAL-AD9833SDZ

EVAL-AD9833SDZ is an evaluation board to evaluate the AD9833 low power 12.65mW, 2.3V to 5.5V, programmable waveform generator. Board is used in conjunction with an EVAL-SDP-CB1Z SDP board available from Analog Devices, Inc. The USB-to-SPI communication to the AD9837 is completed using this Blackfin®-based development board. A high performance, on-board 25MHz trimmed general oscillator is available to use as the clock for the AD9837 system. Various links and SMB connectors are also available on the EVAL-AD9833SDZ board to maximize usability. Typical applications include biomedical sensors bioelectrical impedance analysis, electrochemical analysis, impedance spectroscopy, complex impedance measurement and non-destructive testing.

• Full featured evaluation board for the AD9833 evaluation board
• Graphic user interface software for board control and data analysis
• Connector to EVAL-SDP-CB1Z system demonstration platform (SDP) board
• Various power supply and reference link options
