EVAL-ADAQ23875FMCZ

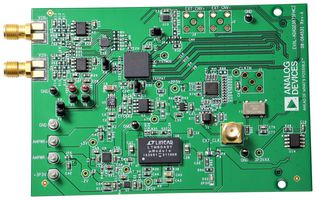

EVAL-ADAQ23875FMCZ is an evaluation board to evaluate the ADAQ23875 16bit, 15MSPS μModule® data acquisition solution. The evaluation board that demonstrates the performance of the ADAQ23875 µModule® and is a versatile tool for a variety of applications. The ADAQ23875 µModule combines multiple common signal processing and conditioning blocks in a single device that includes a low noise, fully differential analogue-to-digital converter (ADC) driver, a stable reference buffer, a high resolution, 16bit, 15MSPS successive approximation register (SAR) ADC and the critical passive components necessary for optimum performance.

• ADAQ23875 15MSPS, 16bit µModule evaluation board
• Versatile analogue signal conditioning circuitry
• On-board reference, LDO and power supply circuits
• PC software for control and data analysis of time and frequency domain
• System demonstration platform-compatible (SDP-H1)

메모

ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
