EVAL-ADFS5758SDZ

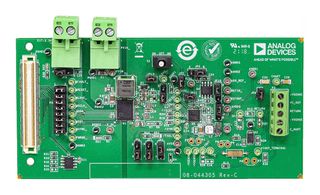

EVAL-ADFS5758SDZ is an ADFS5758 evaluation board to evaluate the ADFS5758 single-channel, 16bit current/voltage output DAC, functional safety approved for unipolar current output. Evaluation board contains the ADP1031-1 power management unit (PMU) which generates three of four power supply inputs required by the ADFS5758. The EVAL-ADFS5758SDZ interfaces to the USB port of the PC via the EVAL-SDP-CS1Z board. The analysis, control, evaluation (ACE) software allows simplified programming of the ADFS5758 and is available with the EVAL-ADFS5758SDZ evaluation board.

• Full featured evaluation board for the ADFS5758
• On-board 2.5V ADR4525 reference
• On-board ADP1031-1 isolated PMU with integrated SPI signal isolation channels
• ACE software for control
