EVAL-ADM2867EEBZ

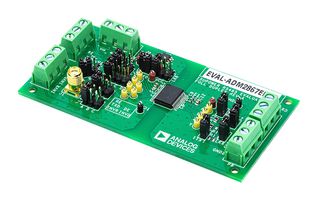

EVAL-ADM2867EEBZ is an ADM2867E 5.7KV RMS ADM2867E signal and power isolated RS-485 transceiver with ±15KV IEC ESD evaluation board. The ADM2867E features an integrated, isolated, DC-to-DC converter that provides power to the isolated side of the device with no additional ICs required. An on-board ADP7104 low dropout (LDO) regulator accepts an input voltage of 3.3V to 20V and regulates the voltage to a selectable 3.3V or 5V supply for the VCC pin of the ADM2867E. The LDO regulator can be bypassed to power the VCC pin of the ADM2867E directly.

• Simplified evaluation of the 25Mbps ADM2867E RS-485 transceiver
• 2-layer PCB compliant to EN 55032 Class B radiated emissions
• On-board ADP7104 LDO regulator with jumper for simplified evaluation in 5V or 3.3V configuration
• Flexible, low voltage VIO supply rail to interface with I/O nodes as low as 1.7V
• Selectable 3.3V or 5V isolated supply voltage options available
• IEC 61000-4-2 ESD protection on A, B, Y and Z pins ±12KV contact discharge and ±15KV air discharge
• SMA connector for high speed 25Mbps TxD input signal
• Optional on-board LTC6900 oscillator to provide TxD input signal
• Screw terminal blocks for power connections, digital signals and RS-485 signals
• Jumper-selectable enable and disable for digital input signals
