EVAL-ADMX3652Z

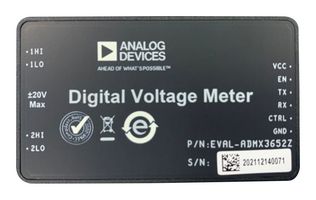

EVAL-ADMX3652Z is a 6 ½ digit ±20V dual channel digital voltage meter. Selection within the 3 measurement ranges can be done manually, or through the auto range function. With EVAL-ADMX3652’s small form factor, it can be easily integrated into a system, or can also serve as a benchtop voltmeter when connected with the EVAL-ADMX3652Z-INT, an interface board that enables the EVAL-ADMX3652Z be used with an intuitive GUI for evaluation. This interface communicates from the EVAL-ADMX3652Z via USB to UART with a Windows PC and has 2 voltage measurement channels using banana jack connectors.

• 90 days accuracy: up to 17ppm of reading at 2V range
• Manual and auto range selection, auto zero function
• Power sequence monitor & input protection
• UART communication interface, SCPI protocol
• 5V power supply
