EVAL-ADUM6421AURNZ

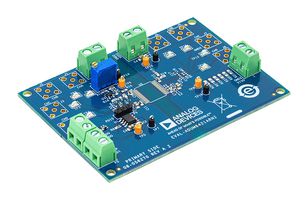

EVAL-ADUM6421AURNZ is an unpopulated evaluation board for ADuM6420A/ADuM6421A/ADuM6422A quad-channel isolator with integrated DC to DC converter. The ADuM6420A/ADuM6421A/ADuM6422A devices integrate four iCoupler® on-off keying (OOK) digital isolation channels and iCoupler chip scale isoPower® transformer technology. This iCoupler transformer technology enables a small form factor integrated, reinforced isolated signal and power solution in applications requiring up to 500mW of isolated power.

• isoPower integrated, isolated DC to DC converter
• Meets CISPR 32/EN 55032, Class B emission limits
• On-board 6V to 9V LDO power supply that provides 5V to the VDDP pin
• 5V input operation and selectable 3.3V or 5V isolated dc-to-dc converter output
• Screw terminal connectors for the following: LDO power supply, 5V direct power supply
• Screw terminal connectors for the following: off board PDIS control, isolated output supply
