EVAL-ADUMQSEBZ

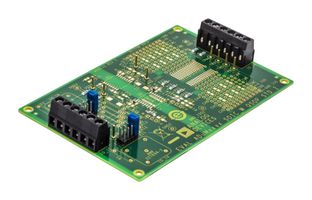

EVAL-ADUMQSEBZ is a board evaluating the 16-Lead SOIC and the 16-Lead QSOP digital isolators. The EVAL-ADuMQSEBZ can be used with most iCoupler® isolation products in the 16-lead, wide-body SOIC and QSOP packages. The evaluation board supports the common pad positions for power, ground and input/output pins found in nearly all of the iCoupler products and is a configurable board that can be adapted to many iCoupler products. Supported icoupler models ADuM130x, ADuM131x, ADuM140x, ADuM141x, ADuM1510, ADuM240x, ADuM330x, ADuM340x, ADuM344x, ADuM5000, ADuM520x, ADuM540x, ADuM6000, ADuM620x, ADuM640x, ADuM744x, ADuM7510.

• Convenient connections for power through screw terminal blocks
• Add-on BNC connector for 50 ohm signal sources
• On-board signal routing
• Support for signal wrap back
• Simple signal paths to reduce transmission line effects
• Pull-up and pull-down provided for control lines
• Support for isoPower
• Project area that supports surface-mount and through-hole devices
