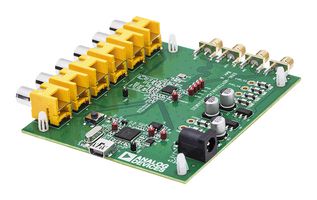

EVAL-ADV7281AMEBZ

EVAL-ADV7281AMEBZ evaluation kit is the platform provided by Analog Devices, Inc., to evaluate the ADV7281A-M video decoder. The ADV7281A is a versatile one-chip, multiformat video decoder that automatically detects standard, analogue baseband video signals and converts them into YCrCb 4:2:2 component video data streams. The evaluation kit contains an EVAL-ADV7281AMEBZ evaluation board and all of its necessary peripherals. Six video input ports capable of accepting any of the formats: single-ended CVBS, differential CVBS, S-Video (Y/C), and component (YPbPr).

• MIPI CSI-2 Tx output

목차

EVAL-ADV7281AMEBZ evaluation board, 7.5V power supply block, USB cable.
