EVAL-CN0571-EBZ

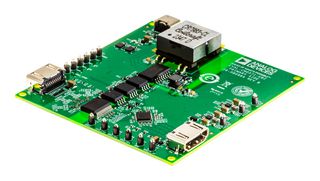

EVAL-CN0571-EBZ is a CN-0571 circuit evaluation board. The CN0571 provides a completely galvanically isolated connection between a HDMI sink and a HDMI source running at 1080p/60Hz resolution. While galvanic isolation is typically not found implemented in a multimedia interface such as HDMI, many applications require the presence of such an isolation barrier. In general, galvanic isolation enables an interface with immunity to noise, ground loops and electrical line surges, while providing a safety barrier against electric shock for personnel and low voltage electronics. Certain applications, especially in the medical space, mandate this electrical safety via the relevant safety certification bodies and standards.

• EVAL-CN0571-EBZ: external supply must be connected to Type C USB port to power all ICs in board
