EVAL-RS485FDEBZ

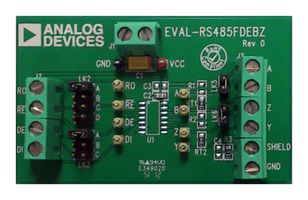

EVAL-RS485FDEBZ allow quick and easy evaluation of RS-485 transceivers with standard SOIC footprints. The evaluation board allows all of the input and output functions to be exercised without the need for external components. Screw terminal blocks provide convenient connections for power and ground, digital I/O, and RS-485 signals.

• Footprint for a full-duplex RS-485 transceiver in a 14-lead SOIC package
• Power/ground connections through screw terminal blocks
• Screw terminal blocks for logic I/O and RS-485 signals
• Jumper selectable enable/disable for RE (active-high) and DE
• Test points for measuring all signals
• Resistors and footprints for termination and biasing networks
