MAX14915EVKIT#

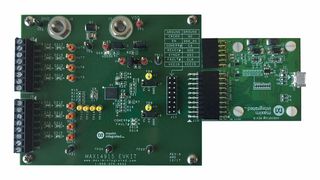

MAX14915EVKIT# is an MAX14915 evaluation kit (EV kit) which provides a proven design to evaluate the MAX14915, octal high-side switch with extended diagnostics. The EV kit includes the MAX14915 evaluation board and a graphical user interface (GUI) that provides communication from a PC to the target device through a USB port and the USB2GPIO interface board. The GUI is compatible with Windows 10 for exercising the features of the MAX14915 IC. The EV kit GUI allows individually controlling of eight high-side switches through the high-speed SPI interface and receive a diagnostic information from the MAX14915, including open-wire/open-load conditions, state of the output channels, multiple undervoltage alarms, global and per channel overtemperature alarms, and multiple fault alarms. The MAX14915 EV kit must be powered from an external +24V power supply and can consume more than 10A when fully loaded. The USB2GPIO interface board is powered from the USB port.

• Robust operation with wide input voltage range and load conditions
• VDDOK indication
• LED indication for channel status and fault conditions
• Fast inductive load demagnetization
• Open-wire, overload, undervoltage, overcurrent thermal shutdown fault indication
• Supports watchdog and synch features
• Communication error indication
• Wide logic voltage range, pin-addressable SPI communication
• Operating temperature range from -40°C to +125°C
• Proven PCB layout and fully assembled and tested
